H200 series biological microscope adopts ergonomic design, unique shape, light structure, and built-in handle for easy access and movement. It is a cost-effective microscope that can be used for teaching and research in biology, bacteriology, etc. in schools and laboratories.
Product details:
● Eyepiece
WF10X/18mm, WF16X/15mm, WF20X (optional)
● Achromatic objective
4X, 10X, 40X (spring), 100X (spring, oil)
● Double-layer mechanical stage
120X115mm，76X40mm
● Coaxial coarse and fine focusing, tightness adjustable
Coarse adjustment stroke: 22mm, fine adjustment accuracy: 0.002mm
● Lighting system
Reflector (as an accessory)
LED 1W, non-rechargeable, adjustable brightness
● Dimming system
Digital circuit, precise stepless dimming, no screen flicker
● Power supply
LED external switching power supply, input AC90V-240V, output DC 5V/2A
-
H200 Series Biological Microscope Main Parameters
Model Number
H215-A
H226-A
H236-A
Total magnification
40X-1000X
Observation tube

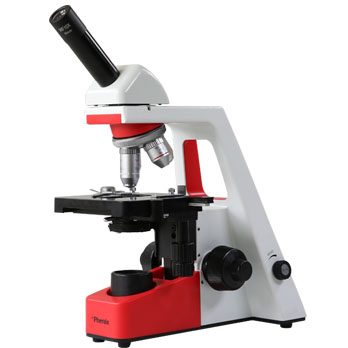

Monocular tube,
45°inclined,
360° rotatable

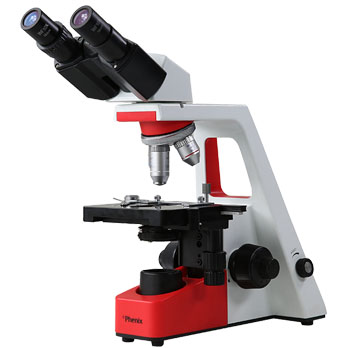

Compensation binocular
tube, 30°inclined, 360°
rotatable, interpupillary
distance: 48-75mm

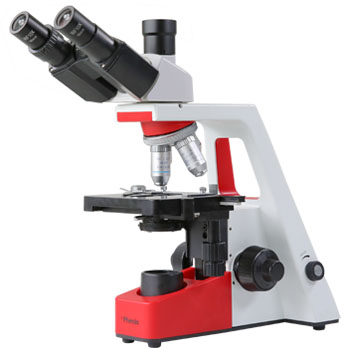

Compensation trinocular
tube, 30°inclined, 360°
rotatable, interpupillary
distance: 48-75mm
Eyepiece
WF10X/18mm
Objective
195 Achromatic
4X
10X
40X（Spring）
100X（Spring, Oil）
Nosepiece
Four Holes Nosepiece
Stage
Double-layer mechanical stage, automatic refocusing, 120X115mm,
stroke 76x40mm (Abbe condenser, lifting ring up and down)
Focusing mechanism
Coaxial coarse and fine adjustment, elasticity adjustable,
coarse focusing range 28mm, fine focusing graduation: 0.002mmCondenser
Abbe condenser, NA=1.25, iris diaphragm,
center adjustable,lifting ring up and down
Collecting mirror
Critical illumination
Bottom light
Reflector (as an accessory)
LED 3W, non-rechargeable, brightness adjustable
Dimming system
Digital circuit, precise stepless dimming, no screen flicker
Power supply
LED light use external switch power supply,
input AC90-240V, output DC 5V/2A
Others
/
1X C-type interface
-
